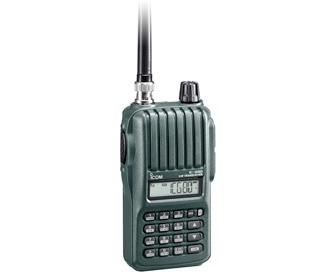

VHF TRANSCEIVER IC-G80
Professional in every sense! Performance, build, audio and operation
5W output power, 136-174MHz full VHF coverage
Professional RF performance, resistance to interference
750mW* loud and intelligible audio with BTL amplifier and large 36mm speaker
* Typical value with internal speaker.
IP54 and MIL-STD-810 rugged construction
Large capacity Li-Ion battery pack provides 18.5 hours* of operating time
* Typical operation. 5:5:90 duty cycle with auto power save.
Wide/narrow channel spacing
Integrated VOX function
200 channels
Built-in CTCSS and DTCS encoder/decoder
5 character alphanumeric display
Priority, memory and skip scanning
16 DTMF autodial memories
Repeater lockout and busy channel lockout
Time-out-timer
Power save function and auto power off
BATTERY CASE
AA(LR6) × 6 cells
| BP-263 | | | |
(Ni-MH)
7.2V/1400mAh
| BP-264 |
(Li-Ion)
7.4V/1900mAh (min.), 2000mAh (typ.)
| BP-265 | | |
Regular charger for BP-264 (Ni-MH battery)
(Use with BC-147S)
| BC-192 |
Rapid charger for BP-264 (Ni-MH battery)
(Use with BC-123S)
| BC-191 |
Rapid charger for BP-265 (Li-Ion battery)
(Use with BC-123S)
| BC-193 |
Rapid multicharger for BP-264 or BP-265.*
(Use with BC-157S)
| BC-197 |
AC ADAPTERS
12V/200mA
(Use with BC-192)
| BC-147S* |
12V/1A
(Use with BC-191 or BC-193)
| BC-123S* |
12V/6.6A
(Use with BC-197)
| BC-157S |
CHARGER ADAPTERS
Charger adapter for BP-264.
(Use with BC-197)
| AD-120* |
Charger adapter for BP-265.
(Use with BC-197)
| AD-121* | | |
POWER SUPPLY CABLES
Cigarette Lighter Cable
(Use with BC-191 or BC-193)
| CP-23L |
DC Power Cable
(Use with BC-191, BC-192 or BC-193)
| OPC-515L |
DC Power Cable
(Use with BC-197)
| OPC-656 | |
Compact type speaker-microphone
| HM-158L |
Full size durable speaker-microphone
| HM-159L | | |
Durable earphone-microphone
| HM-153L | | | |
Earhook headset with flexible boom microphone
(Use with OPC-2004)
| HS-94 |
Behind-the-head headset with flexible boom microphone
(Use with OPC-2004)
| HS-95 |
Throat microphone that fits around your neck and picks up speech vibrations
(Use with OPC-2004)
| HS-97 | |
(Use with either HS-94, HS-95 or HS-97)
| OPC-2004 | | | |
Alligator type
| MB-124 | | | |
VHF Antenna
| FA-B2E | | |
General
| IC-G80 | |||
| Frequency range | 136MHz–174MHz | |||
| Number of channels | 200 channels | |||
| Channel spacing | 12.5kHz/25kHz | |||
| Type of emission | F2D/F3E | |||
| Current drain | Tx | 1.4A (5W) | ||
Rx | Stand-by | 60mA typ. | Max. audio | 300mA (Internal SP) |
| Dimensions (W×H×D) (Projections are not included) | 58×112×30 mm | |||
| Weight | 140g (Without battery pack) 360g (With BP-264 and antenna) | |||
Transmitter
| IC-G80 |
| RF output power (at 7.2V DC) | 5.0/2.5/0.5W (High/Mid/Low) |
| Spurious emissions | Less than -70dB |
| Frequency stability | ±2.5ppm |
Receiver
| IC-G80 | |
| Sensitivity (at 12dB SINAD) | 0.18μV typ. | |
| Adjacent channel selectivity (W/N) | 72/65dB typ. | |
| Spurious & Image rejection | 80dB typ. | |
| Intermodulation rejection | 72dB typ. | |
| AF output power (at 5% distortion ) | Internal SP (With 16Ω load) | 750mW typ. |
| External SP (With 8Ω load) | 420mW typ. | |
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
Standard | MIL-810 F |
Low Pressure Storage | 500.4 I |
Low Pressure Operation | 500.4 II |
High Temperature Storage | 501.4 I |
High Temperature Operation | 501.4 II |
Low Temperature Storage | 502.4 I |
Low Temperature Operation | 502.4 II |
Temperature Shock | 503.4 I |
Solar Radiation | 505.4 I |
Rain Blowing | 506.4 I |
Rain Drip | 506.4 III |
Humidity Induced | 507.4 |
Salt Fog | 509.4 |
Dust Blowing | 510.4 I |
Vibration | 514.5 I |
Shock Functional | 516.5 I |
Shock Transit Drop | 516.5 IV |
Ingress Protection Standard
Dust & Water | IP54 (Dust-protection and water resistant) |
All stated specifications are subject to change without notice or obligation.
